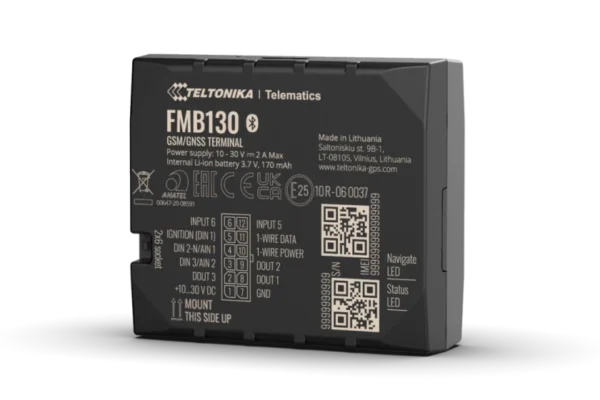

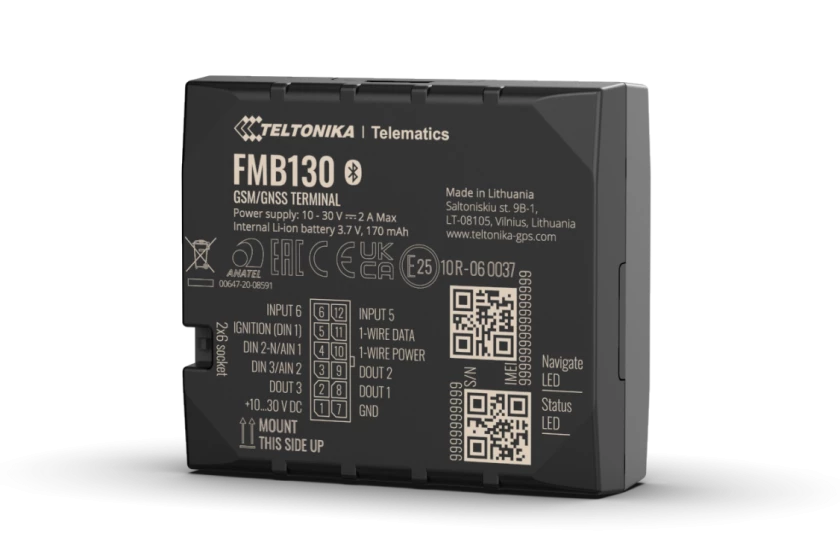

FMB130

FMB130

Advanced 2G tracker with flexible inputs

2G,4G, M1

Add to wishlist

Ask a Question

Categories: 2G bands, 4G LTE bands, All, SERVICES, Teltonika, Vehicle Tracker

Description

Advanced 2G tracker with flexible inputs

2G,4G, M1

Additional information

Module	Name: Teltonika TM2500 Technology: GSM/GPRS/GNSS/BLUETOOTH
GNSS	GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS Receiver: 33 tracking channel 99 acquisition channel Tracking sensitivity: -165 dBM Position Accuracy: < 2.5 m CEP Hot start: <1 s Warm start: < 25 s Cold start: < 35 s
Cellular	Technology: GSM 2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B Data support: SMS (text/data)
Power	Input voltage range: 10–30 V DC with overvoltage and reverse polarity protection Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Bluetooth®	Specification: 4.0 + LE Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
Physical specification	Dimensions: 65 x 56,6 x 20,6 mm (L x W x H) Weight: 55 g
Operating environment	Operating temperature (without battery): -40 °C to +85 °C Storage temperature (without battery): -40 °C to +85 °C Operating humidity: 5% to 95% non-condensing Ingress Protection Rating: IP41 Battery charge temperature: 0 °C to +45 °C Battery discharge temperature: -20 °C to +60 °C Battery storage temperature: -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months
Interface	Digital Inputs: 3 Digital Outputs: 3 Negative Inputs: 1 (Digital Input 2) Impuls Inputs: 2 (Digital Input 1, Digital Input 2) Analog Inputs: 2 CAN Adapter Inputs: 1 1-Wire: 1 GNSS antenna: Internal High Gain Cellular antenna: Internal GSM High Gain USB: 2.0 Micro-USB LED indication: 2 status LED lights SIM: Micro-SIM or eSIM Memory: 128MB internal flash memory
Features	Sensors: Accelerometer Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®) SMS: Configuration, Events, DOUT control, Debug GPRS commands: Configuration, DOUT control, Debug Time Synchronization: GNSS, NITZ, NTP Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN- CONTROL, OBDII dongle Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
Certification & approvals	Regulatory: CE/RED, EAC, RoHS, REACH, E-Mark, Anatel, SIRIM QAS, SDPPI POSTE, ICASA
