Description
FTC961

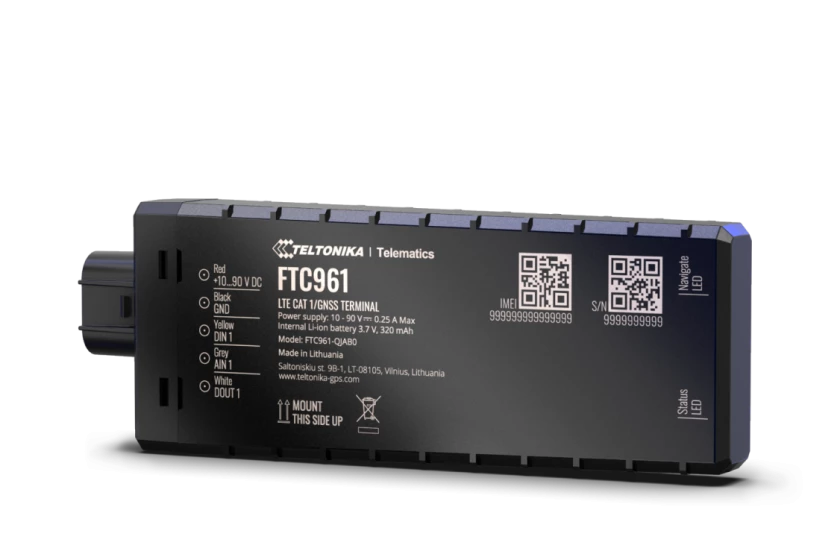

Next-generation high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
FTC961
Next-generation high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
FTC961
Next-generation high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
Product | Model name: FTC961-QJAB0 |
---|---|
GNSS | GNSS: GPS, GLONASS, GALILEO, BEIDOU Receive type: 135 tracking/acquisition channels Tracking sensitivity: -165 dBM Position Accuracy: < 1.8 m CEP Velocity Accuracy: < 0.1 m/s (within +/- 15% error) |
Cellular | 2G bands: GSM: B2/B3/B5/B8 4G LTE bands: LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28 Data transfer: LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL) GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) Transmit power: Class 5 for GSM850/900: 30±5dBM Class 3 for GSM1800/1900: 29±5dBM Class 3 for LTE-FDD: 26±5dBM Data support: SMS (TEXT, PDU), Network protocols (TCP) |
Data codec | Codec support: Codec 8 Extended |
Power | Input voltage range: 10–90 V Internal Back-up battery: 320 mAh Li-Ion battery 3.7V (1.18 Wh) Internal fuse: 3A, 125V Power consumption: TBA |
Physical specification | Dimensions: 118 x 48 x 18.5 mm (L x W x H) Weight: 118 g |
Operating environment | Operating temperature (without battery): -40 °C to +85 °C Storage temperature (without battery): -40 °C to +85 °C Operating temperature (with battery): -20 °C to +40 °C Storage temperature (with battery): -20 °C to +60 °C Operating humidity: 5% to 95% non-condensing Ingress Protection Rating: IP69 Battery charge temperature: 0 °C to +45 °C Battery discharge temperature: -20 °C to +60 °C Battery storage temperature: -10 °C to +50 °C for 1 month -10 °C to +35 °C for 3 months 0 °C to +30 °C for 1 year |
Interface | Digital Inputs: 1 Digital Outputs: 1 Analog Inputs: 1 GNSS antenna: Internal High Gain Cellular antenna: Internal GSM High Gain USB: 2.0 USB Micro B LED indication: 2 status LED lights SIM: Nano-SIM Memory: 32Mb internal flash memory |
Features | Sensors: Accelerometer Scenarios: Over Speeding detection, Jamming detection, Unplug detection, Trip Configuration and firmware update: FOTA Web, Teltonika Configurator (TCT) SMS: Configuration, Events, Debug: GPRS commands: Configuration, Debug: Time Synchronization: GNSS, NITZ, NTP Ignition detection: Digital Input 1, Accelerometer, External Power Voltage |
Certification & approvals | Regulatory: In progress |
