Description
FMB122
2G anti-theft tracking device for fleet management
FMB122
2G anti-theft tracking device for fleet management
Module | Name: Teltonika TM2500 Technology: GSM/GPRS/GNSS/BLUETOOTH |
---|---|
GNSS | GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS Receiver: 33 tracking channel 99 acquisition channel Tracking sensitivity: -165 dBM Position Accuracy: < 2.5 m CEP Hot start: < 1 s Warm start: < 25 s Cold start: < 35 s |
Cellular | Technology: GSM 2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B Data support: SMS (text/data) |
Power | Input voltage range: 10–30 V DC with overvoltage and reverse polarity protection Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) Power consumption: At 12V < 6 mA (Ultra Deep Sleep) At 12V < 8 mA (Deep Sleep) At 12V < 11 mA (Online Sleep) At 12V < 19 mA (GPS Sleep) At 12V < 34 mA (nominal) |
Bluetooth® | Specification: 4.0 + LE Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |

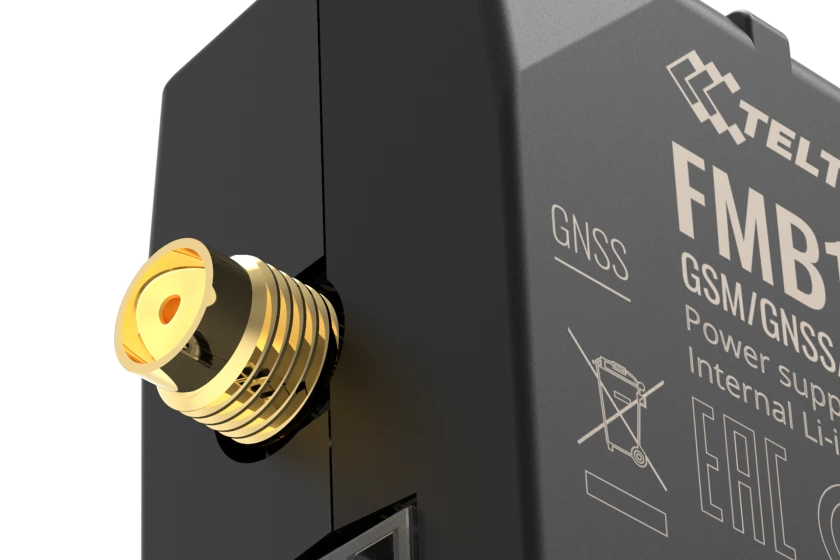

Interface | Digital Inputs: 3 Digital Outputs: 2 Analog Inputs: 2 CAN Adapter Inputs: 1 1-Wire: 1 GNSS antenna: External (MMCX connector) High Gain Cellular antenna: Internal GSM High Gain USB: 2.0 Micro-USB LED indication: 2 status LED lights SIM: Dual SIM Memory: 128MB internal flash memory |
Physical specification | Dimensions: 65 x 56,6 x 18,9 mm (L x W x H) Weight: 51 g |
Operating environment | Operating temperature (without battery): -40 °C to +85 °C Storage temperature (without battery): -40 °C to +85 °C Operating humidity: 5% to 95% non-condensing Ingress Protection Rating: IP41 Battery charge temperature: 0 °C to +45 °C Battery discharge temperature: -20 °C to +60 °C Battery storage temperature: -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
Features | Sensors: Accelerometer Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®) SMS: Configuration, Events, DOUT control, Debug GPRS commands: Configuration, DOUT control, Debug Time Synchronization: GNSS, NITZ, NTP Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
Certification & approvals | Regulatory: CE/RED, EAC, E-Mark, RoHS, REACH, SIRIM QAS, ICASA |
