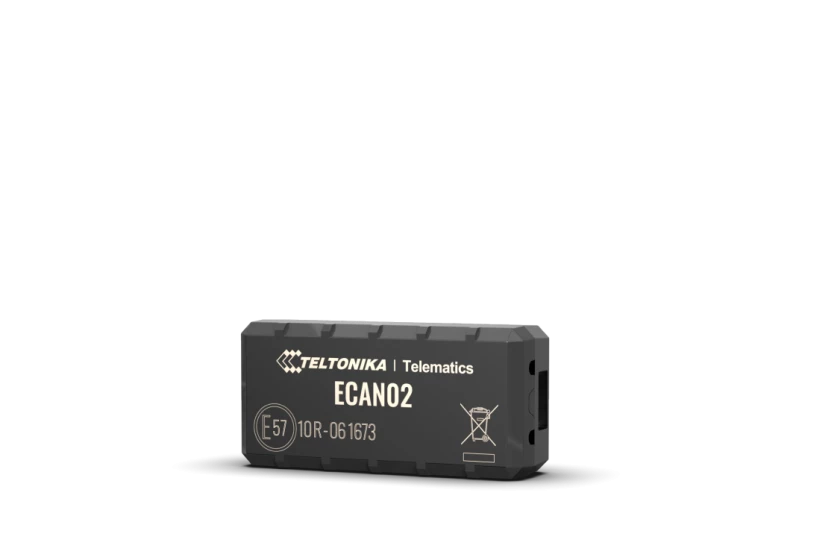

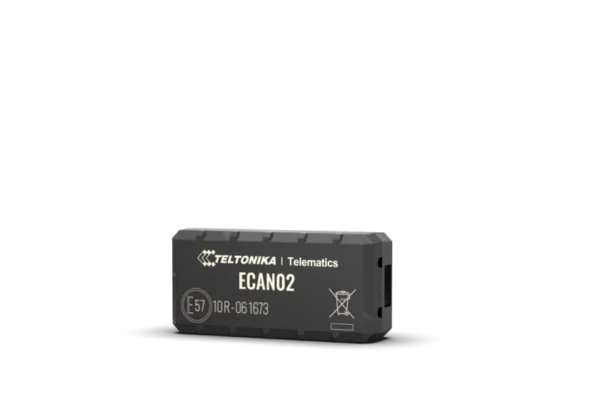

ECAN02

New-generation warranty-friendly CAN adapter for contactless access to CAN bus data

Description

ECAN02

New-generation warranty-friendly CAN adapter for contactless access to CAN bus data

Suitable for	Supported by: LV-CAN200, ALL-CAN300, FMB641, FMX650, FMB140, FMB240, FMX150
Power	Input voltage range: 10–30 V DC Power consumption: At 12V < 1,47 mA (Standby) At 12V < 4,21 mA (Working)
Operating environment	Operating temperature (without battery): -40°C to +85°C Operating humidity: Max 85% non-condensing
Technical data	Features: ECAN02 collects vehicle data from CAN bus without damaging the wires Powered from on-board power source Reads the signals through the isolation of CAN bus wires Easy to install and operate CAN-BUS speeds from 33 to 1000 kb/s Automatically adjusts signal level and speed
Physical specification	Dimensions: 39.0 x 19.0 x 12.0 mm (L x W x H) Weight: 16,1 g
