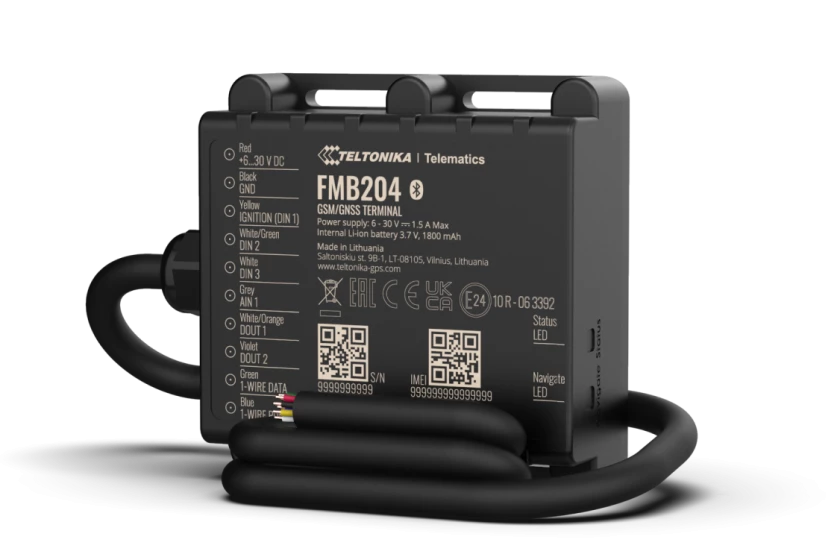

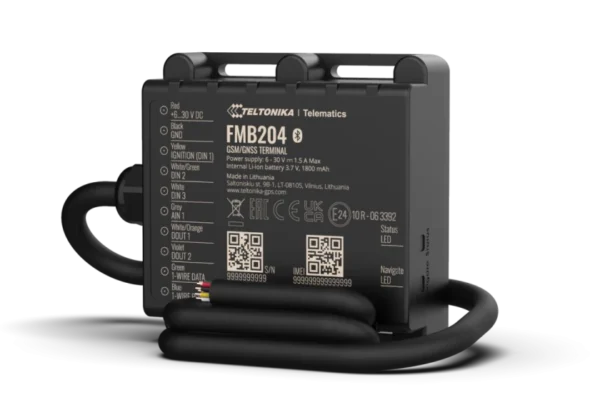

FMB204

FMB204

1.8 Ah
0.4 Ah

Water-resistant 2G GPS tracker with large-capacity battery

Compare

Description

FMB204

1.8 Ah
0.4 Ah

Water-resistant 2G GPS tracker with large-capacity battery

Additional information

Module

Name: Teltonika TM2500

Technology: GSM/GPRS/GNSS/BLUETOOTH

GNSS

GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver: 33 tracking channel

99 acquisition channel

Tracking sensitivity: -165 dBM

Position Accuracy: < 2.5 m CEP

Hot start: < 1 s

Warm start: < 25 s

Cold start: < 35 s

Cellular

Technology: GSM

2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz

Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B

Data support: SMS (text/data)

Power

Input voltage range: 6–30 V DC with overvoltage protection

Internal Back-up battery: 1800 mAh Li-Ion battery, 3.7V (6.66Wh)

Bluetooth®

Specification: 4.0 + LE

Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support

Interface

Digital Inputs: 3

Digital Outputs: 2

Analog Inputs: 1

1-Wire data: 1

1-Wire power: 1

GNSS antenna: Internal High Gain

Cellular antenna: Internal GSM High Gain

USB: 2.0 Micro-USB

LED indication: 2 status LED lights

SIM: Micro-SIM or eSIM

Memory: 128MB internal flash memory

Physical specification

Dimensions: 72,5 x 73 x 27,3 mm (L x W x H)

Weight: 205 g

Operating environment

Operating temperature (without battery): -40 °C to +85 °C

Storage temperature (without battery): -40 °C to +85 °C

Operating humidity: 5% to 95% non-condensing

Ingress Protection Rating: IP67

Battery charge temperature: 0 °C to +45 °C

Battery discharge temperature: -20 °C to +70 °C

Battery storage temperature: -10 °C to +45°C

Features

Sensors: Accelerometer

Scenarios: Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update: FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)

SMS: Configuration, Events, DOUT control, Debug

GPRS commands: Configuration, DOUT control, Debug

Time Synchronization: GNSS, NITZ, NTP

Fuel monitoring: LLS (Analog), OBDII dongle

Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)

Certification & approvals

Regulatory: CE/RED, Pulse 5a, E-Mark, EAC, RoHS, REACH, SIRIM QAS
